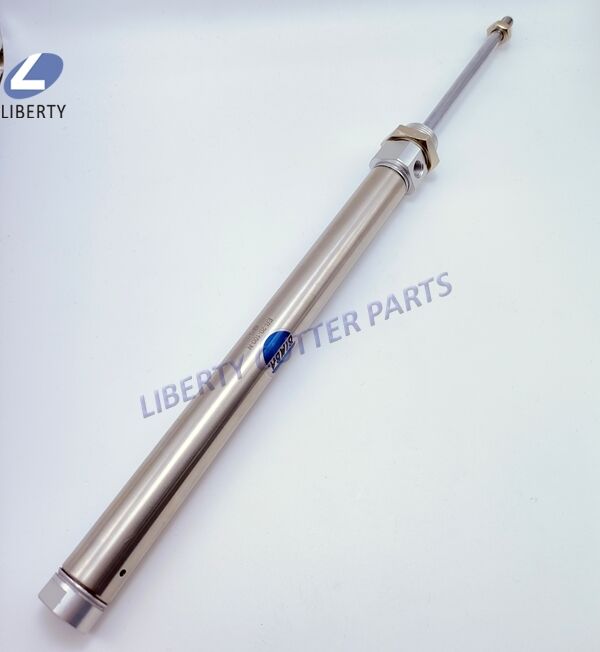

S91 Cutter Parts 376500269 Cylinder Air 100mm Single Action W-Vent
The 376500269 Cylinder Air 100mm Single Action W-Vent is a replacement pneumatic cylinder designed for the S91 automatic cutter.
This air cylinder features a 100mm specification and single-action configuration, making it suitable for pneumatic actuation applications within the S91 cutting machine.
It is supplied as a replacement spare part for machine maintenance when the existing air cylinder becomes worn, damaged, or requires replacement.
Part Number: 376500269
Product Name: Cylinder Air 100mm Single Action W-Vent
Suitable Machine: S91 Cutter
Product Type: Pneumatic Air Cylinder
Cylinder Type: Single Action
Specification: 100mm
Vent Type: W-Vent
Application: Automatic Fabric Cutting Machine
The 376500269 Cylinder Air 100mm Single Action W-Vent is a pneumatic replacement component for the S91 Cutter.
Pneumatic cylinders convert compressed-air energy into mechanical movement and are commonly used to operate or position mechanical components within automatic cutting equipment. In a single-action cylinder, compressed air is used to produce movement in one direction, while the return movement is provided by the cylinder's internal return mechanism.
The 100mm specification is an important identification point when selecting this replacement cylinder. Customers should also confirm the single-action configuration and W-Vent design before ordering.
During continuous operation of an automatic cutting machine, pneumatic components may eventually experience seal wear, air leakage, reduced movement, or mechanical damage. A replacement cylinder can be required when the existing component no longer provides stable pneumatic movement.
The 376500269 provides a replacement option for customers maintaining S91 cutting machines, including garment factories, textile manufacturers, machine maintenance companies and spare parts distributors.
| Item | Specification |
|---|---|
| Product Name | Cylinder Air 100mm Single Action W-Vent |
| Part Number | 376500269 |
| Suitable Machine | S91 Cutter |
| Product Type | Pneumatic Air Cylinder |
| Cylinder Type | Single Action |
| Specification | 100mm |
| Vent | W-Vent |
| Condition | New |
| Application | Automatic Cutting Machine |
| Industry | Garment / Textile Manufacturing |
| Packing | 1 Piece / Box |
| Warranty | 6 Months |
Note: Please verify the original part number, cylinder configuration and mounting dimensions before ordering. If you are unsure whether 376500269 is suitable for your S91 cutter, please send us a clear photo of the existing cylinder and its label for confirmation.
A pneumatic cylinder uses compressed air to create linear mechanical movement.
The 376500269 is a single-action air cylinder, meaning compressed air is applied to produce movement in one direction. The cylinder then returns through its designed return mechanism when the pneumatic force is released.
In an automatic cutting machine, controlled pneumatic movement can be used to operate mechanical components that need to move between defined positions.
For this type of application, stable air pressure, properly functioning seals and correct installation are important for reliable operation.
If the cylinder develops an air leak or cannot complete its required movement, the related machine mechanism may also become unstable.
A pneumatic cylinder normally works as part of a larger air-control system. If abnormal operation occurs, the complete pneumatic circuit should be inspected.
Possible signs of cylinder wear or damage include:
Before replacing the cylinder, it is recommended to check the air supply, pneumatic tubing, fittings, valves and other related components as well.
Pneumatic components are important for automatic machine operation because they provide controlled mechanical movement.
When an air cylinder becomes worn or damaged, replacing the individual cylinder can be a more practical maintenance solution than replacing an entire mechanism.
The 376500269 Cylinder Air 100mm Single Action W-Vent is intended for customers who need a replacement pneumatic component for their S91 Cutter.
It can be useful for:
For factories operating multiple automatic cutters, keeping frequently required pneumatic components in stock can also help reduce maintenance delays.
We supply a wide range of replacement parts for automatic fabric cutting machines. Customers maintaining S91 and other cutting equipment can contact us for pneumatic, mechanical, electrical and cutting-system components.
Our product range includes different types of pneumatic cylinders and air cylinders for automatic cutting machines, including single-action and double-action configurations.
When selecting a replacement cylinder, customers should always match the machine model, part number, cylinder type, stroke and mounting configuration.
This is another pneumatic cylinder listed in our cutter spare parts range. It is a double-acting cylinder with a different configuration and should not be confused with the 376500269 single-action 100mm cylinder.
Another pneumatic cylinder available for cutter applications. Customers should confirm the exact part number and cylinder specifications before ordering.
A cylinder used in XLC7000 / Z7 cutter applications. This product demonstrates that different cutter models use different pneumatic cylinder configurations, so machine model and part number confirmation are important when selecting a replacement.
A pneumatic cylinder available for Vector Q80 cutter applications. It is another example of a machine-specific pneumatic replacement component from our cutter spare parts range.
The S91 Cutter requires a variety of mechanical, pneumatic, electrical and cutting-related components during its service life.
If you are looking for S91 cutter spare parts, we recommend providing the original part number whenever possible. A clear photo of the component can also help us identify the correct replacement.
We can check individual parts as well as multiple part numbers from a complete maintenance or spare parts list.
If you are maintaining several S91 machines, you can send us your required parts list and quantities for a combined quotation.
376500269 is a Cylinder Air 100mm Single Action W-Vent replacement part for the S91 Cutter.
It is a single-action pneumatic air cylinder.
The product description identifies the cylinder specification as 100mm. Customers should confirm the exact dimensional requirement against the original cylinder before ordering.
A single-action pneumatic cylinder uses compressed air to generate movement in one direction, while the return movement is provided by the cylinder's return mechanism.
This differs from a double-action cylinder, which uses compressed air to control movement in both directions.
W-Vent is part of the product's specified configuration. Customers replacing an existing cylinder should compare the vent configuration and overall construction with the original component to ensure correct compatibility.
The 376500269 Cylinder Air 100mm Single Action W-Vent is specified for the S91 Cutter.
It should not be assumed that this cylinder fits another machine simply because the cylinder has a similar size.
Pneumatic cylinders can differ in stroke, mounting dimensions, port configuration, operating arrangement and other details.
If you want to use 376500269 on another machine, please provide the machine model and existing cylinder information so compatibility can be checked.
Please check:
If you are still uncertain, send us a photo of your existing cylinder and we can help verify it.
Before installation, check the pneumatic supply, air tubing, fittings, valves and mounting points.
The replacement cylinder should be installed according to the machine's maintenance requirements.
Yes. Individual spare parts can be ordered. Please send us your required quantity and destination country so we can check the current price and shipping cost.
Yes. We supply various pneumatic cylinders for automatic cutting machines, including cylinders for GTXL, Vector Q80, XLC7000, Paragon and other cutter models.
Yes. Our replacement parts are supplied with a 6-month quality warranty. If there is a confirmed product quality issue, please contact us with the order information and product details.
Please provide the required quantity and destination country. We can check the latest price, availability and shipping cost for you.
If you are looking for a 376500269 Cylinder Air 100mm Single Action W-Vent for S91 Cutter, please send us your required quantity and delivery destination.
For product verification, you can also provide:
We can check the replacement part and provide a quotation before you place the order.
We also welcome inquiries for other S91 Cutter Parts, Pneumatic Cylinders, Air Cylinders and Automatic Cutting Machine Spare Parts.
